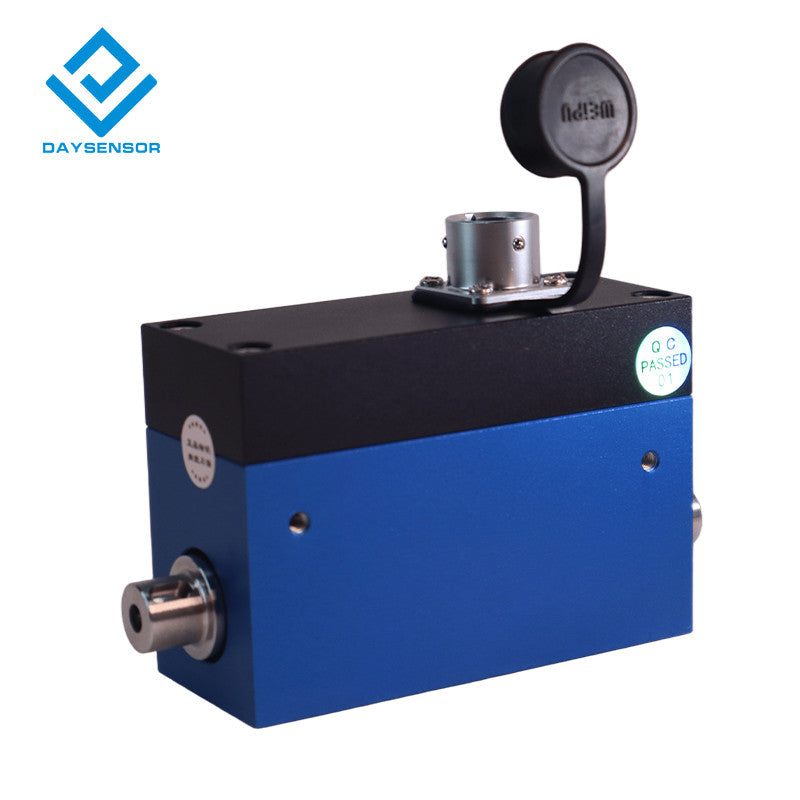

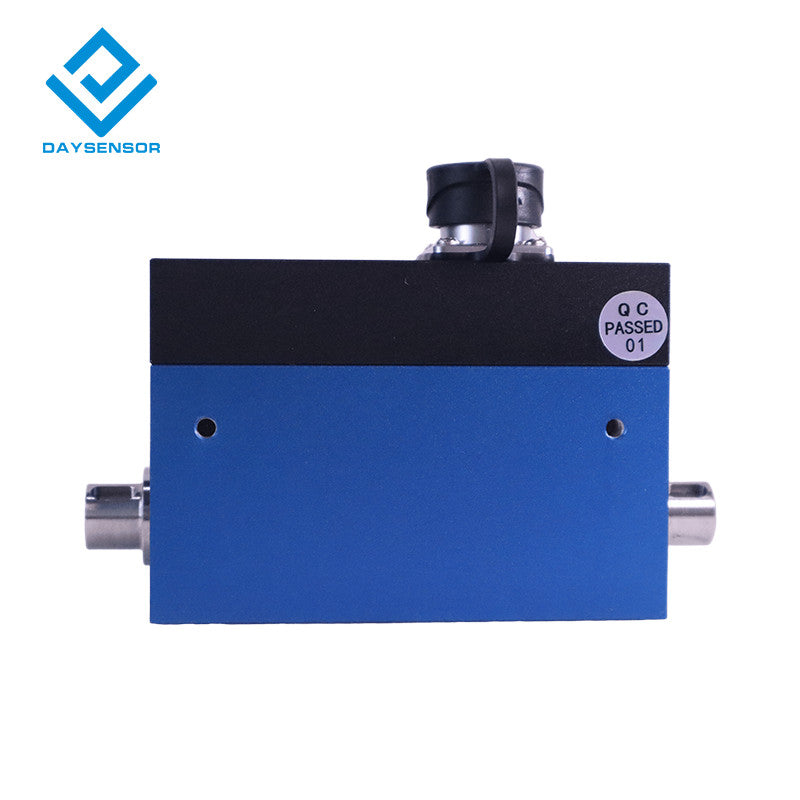

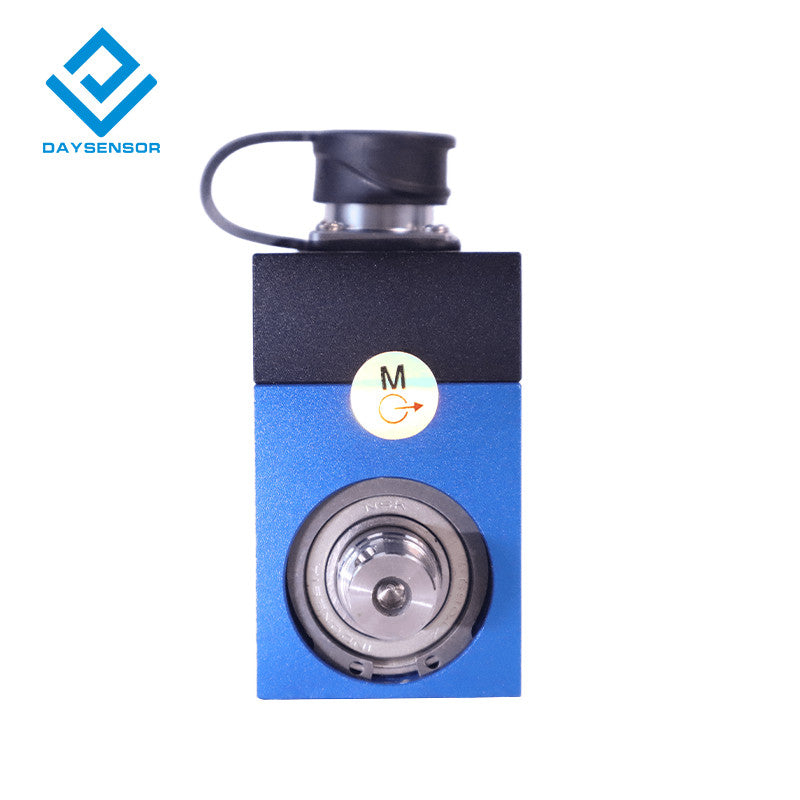

DYN-204 DAYSENSOR Dynamic Torque Sensor 0.1-5N.M Power Torsion Speed Rotating Sensor

DYN-204 DAYSENSOR Dynamic Torque Sensor 0.1-5N.M Power Torsion Speed Rotating Sensor

Measurement Range:

0-0.1N.m

0-0.2N.m

0-0.3N.m

0-0.5N.m

0-1N.m

0-2N.m

0-3N.m

0-5N.m

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

1Low stock

1In stock, ready to ship

$599.99 -0% $599.99

$599.99

Fast Shipping

Free Returns

Best Deals

**Specifications**
Brand	DAYSENSOR
Wanranty	3 Years
Measurement Range	0-5N.m
Accuracy	0.05%F.S (linearity + hysteresis )
Repeatability	0.05%F.S
Torsion Constant	3.85 × 10Nm / rad
OVibration Natural Frequency (rotor Part)	19.4kHz
Insulation Resistance	≥5000MΩ
Sensitivity	2.0±0.05mV/V
Safety Overload	150%F.S
Creep	±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+80℃
Protection Class	IP66
Cable Length	3m（ Φ5）
Material	Stainless steel

After purchasing DAYSENEOR load cell

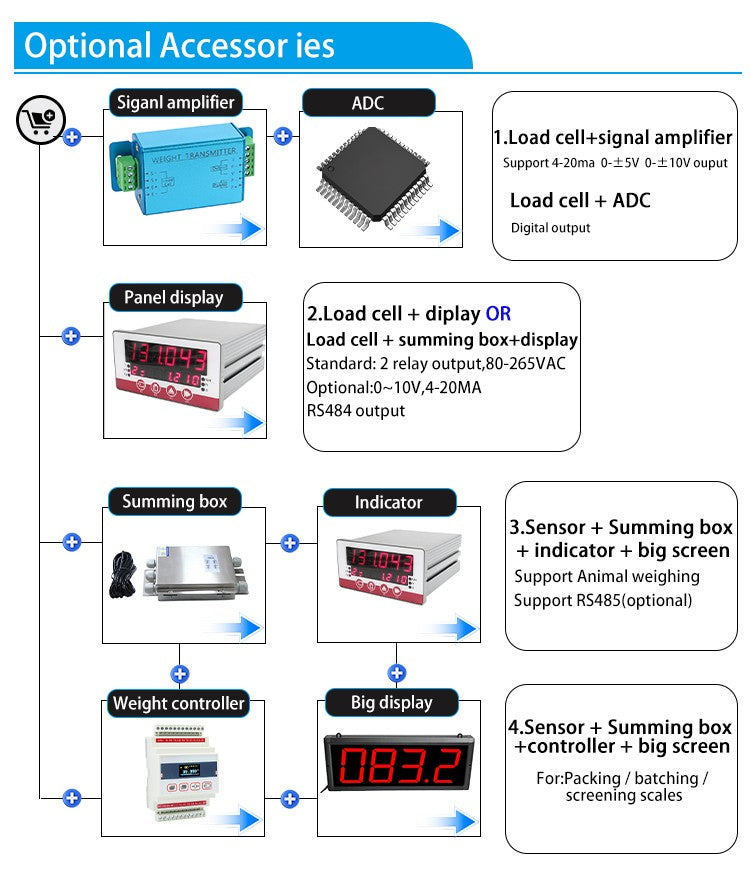

Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

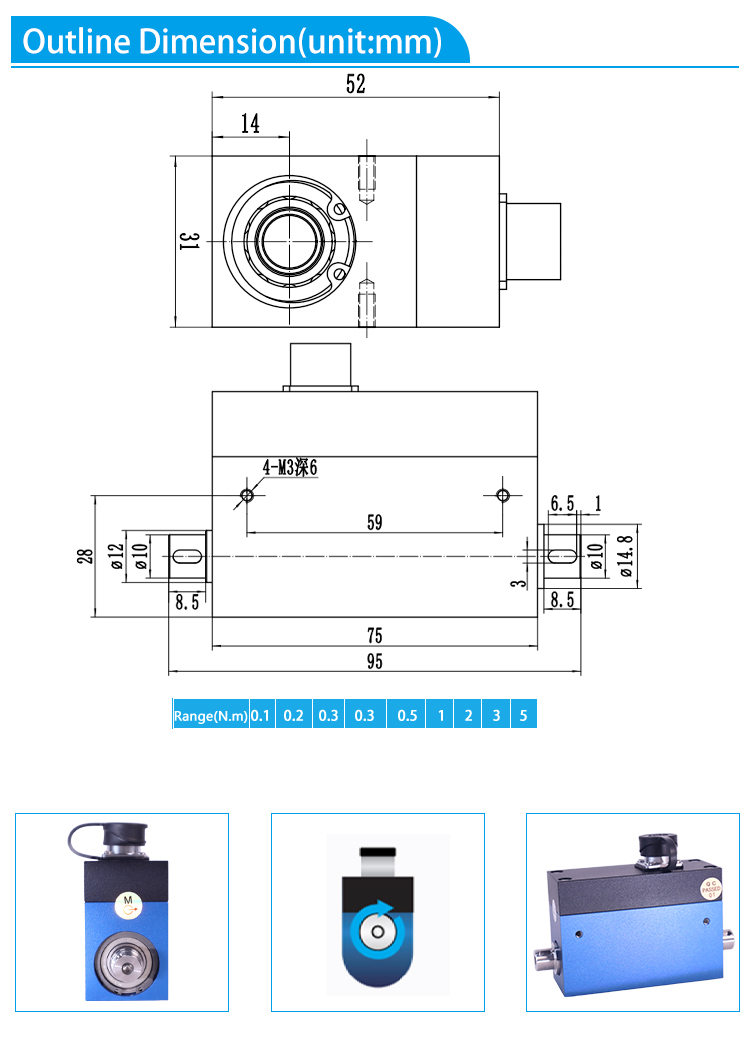

Dimension
