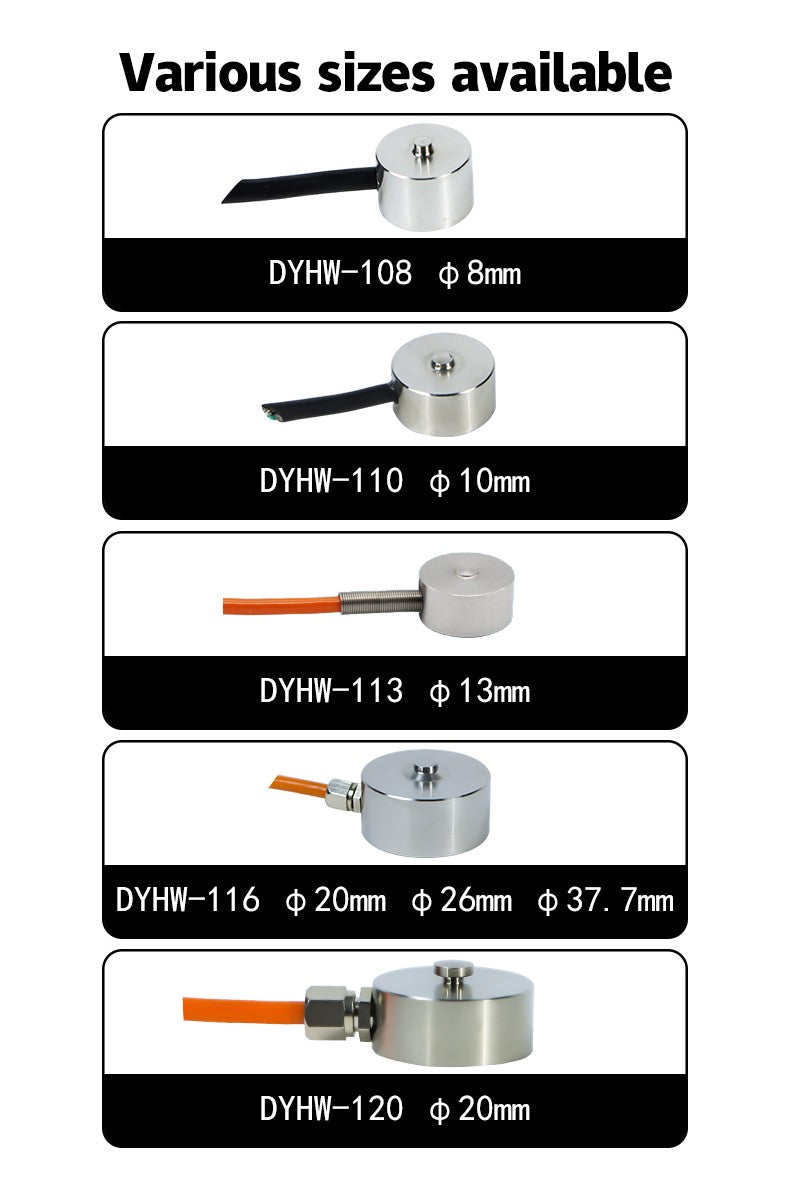

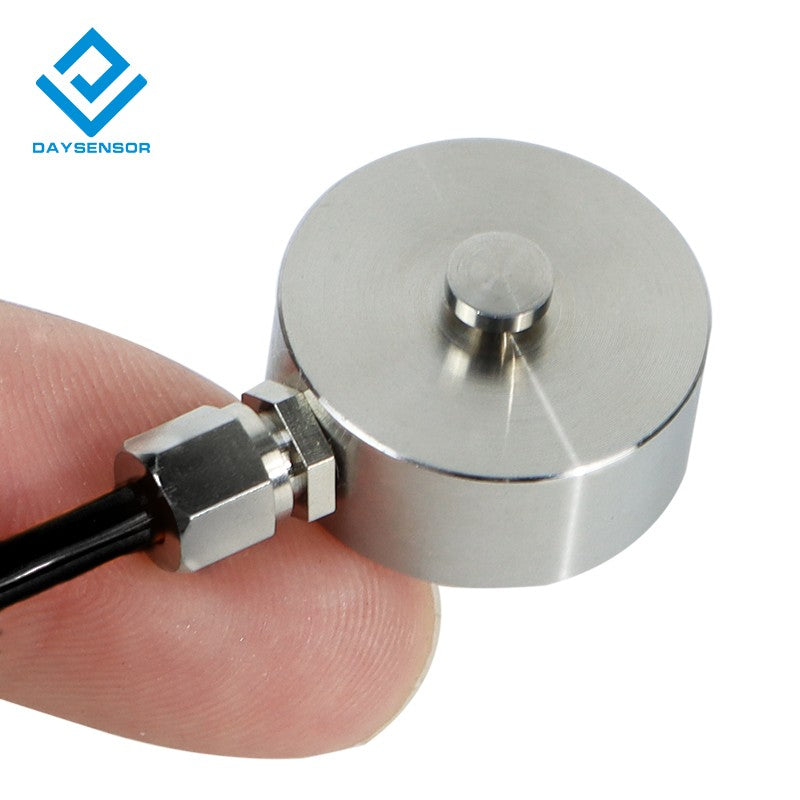

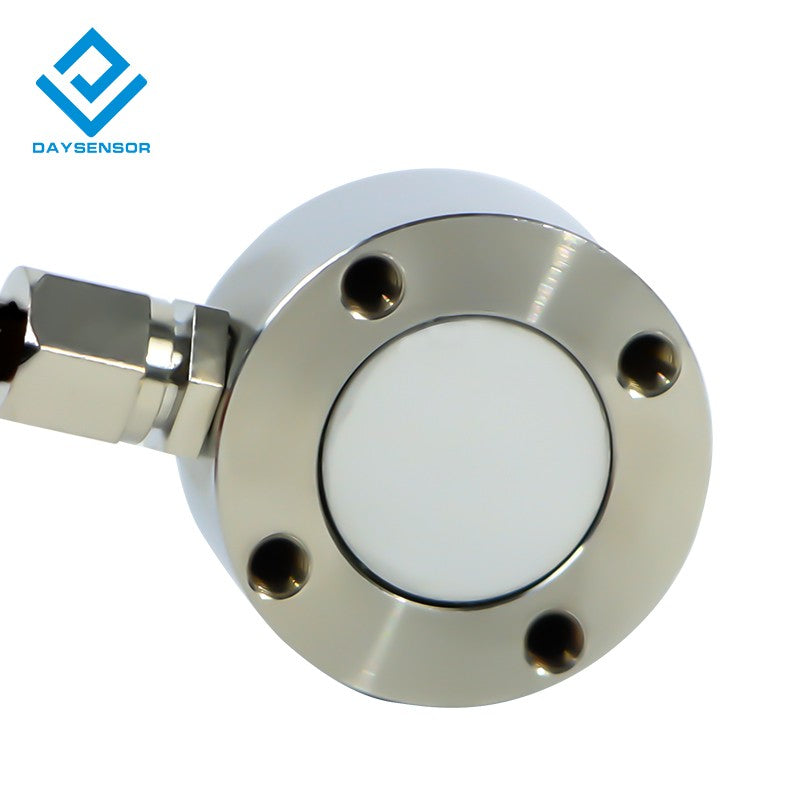

DYHW-120 DAYSENSOR Flat Membrane Load Cell, Ultra-Thin High-Precision

The flat force sensor offers high accuracy in a slim, circular profile, ideal for industrial, robotic, and embedded applications. Designed with durability in mind, it provides consistent readings even under high-frequency usage.

Engineered to Deliver Accurate and Reliable Performance
Equipped with superior sensitivity (1.0–2.0 ± 0.05 mV/V) and minimal non-linearity (≤ 0.3% F.S.), this sensor maintains accuracy across temperature ranges from –20°C to 80°C. Its overload resistance and strong pull resistance further enhance durability.

After purchasing DAYSENEOR load cell
Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

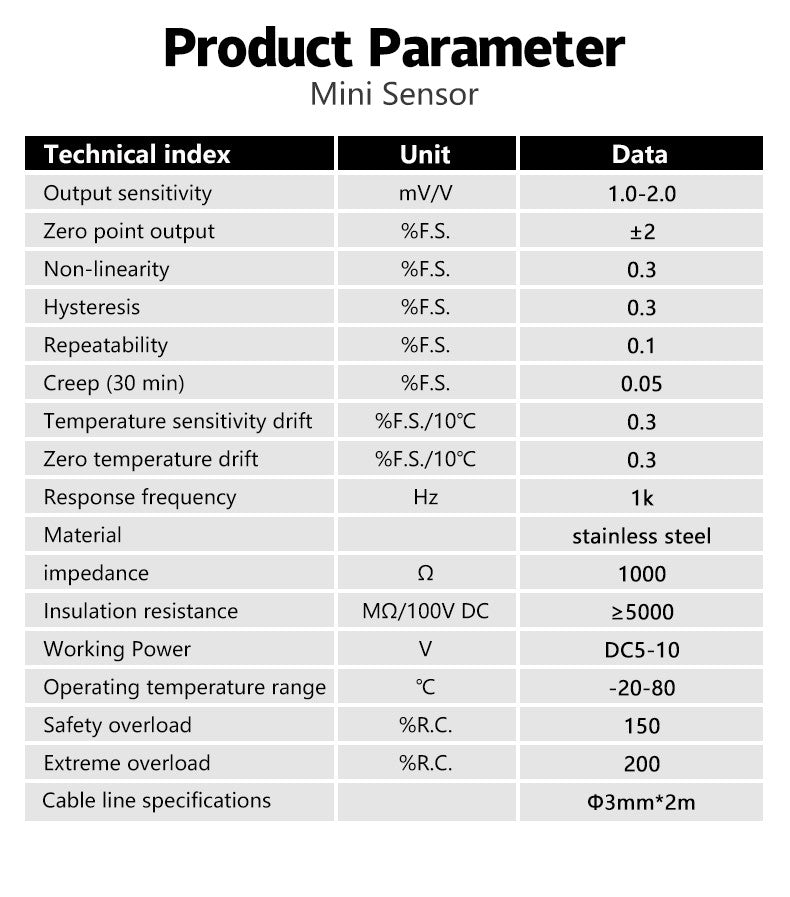

**Specifications**
Brand	DAYSENSOR
Wanranty	3 Years
Measurement Range	5KG-2T
Accuracy	0.3%F.S (linearity + hysteresis )
Repeatability	0.3%F.S
Input Impedance	350±10Ω
Output Impedance	350±10Ω
Insulation Resistance	≥5000MΩ
Sensitivity	2.0±0.05mV/V
Safety Overload	150%F.S
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.3%F.S/10℃
Temperature Effect on Output	±0.3%F.S/10℃
Operating Temperature	-20℃~+80℃
Protection Class	IP66

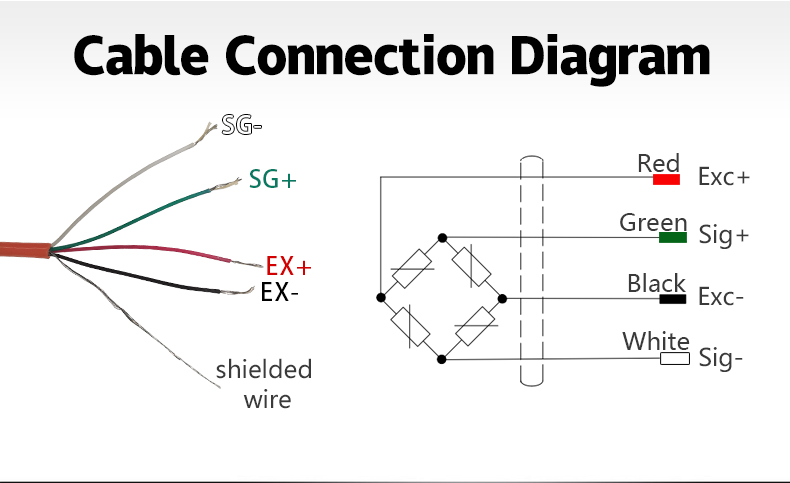

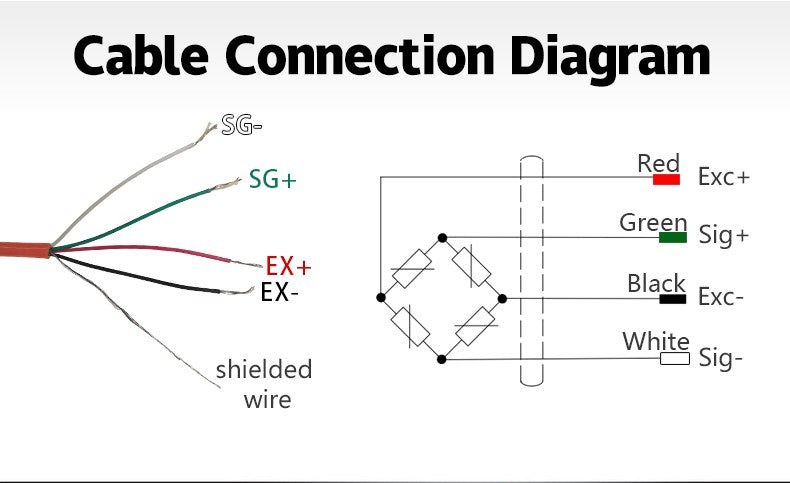

Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
Cable Length2	m（ Φ3）

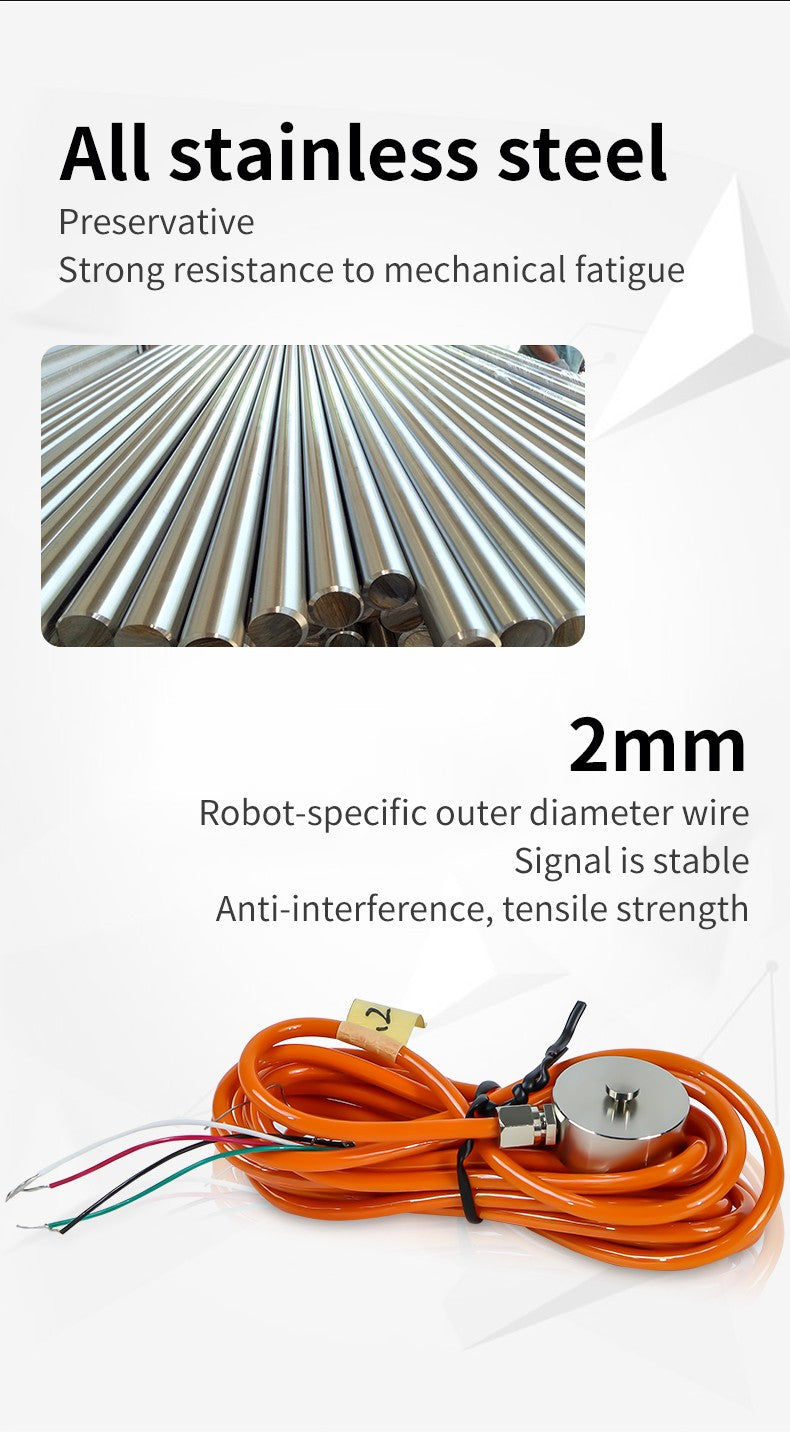

Material	Stainless steel
Package List	1*Load Cell Sensor
