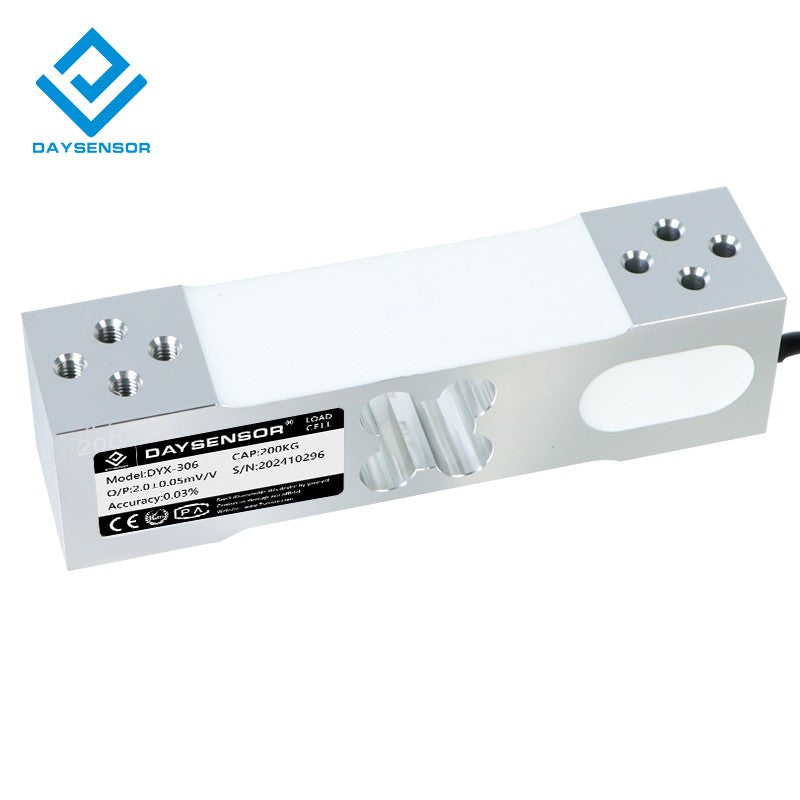

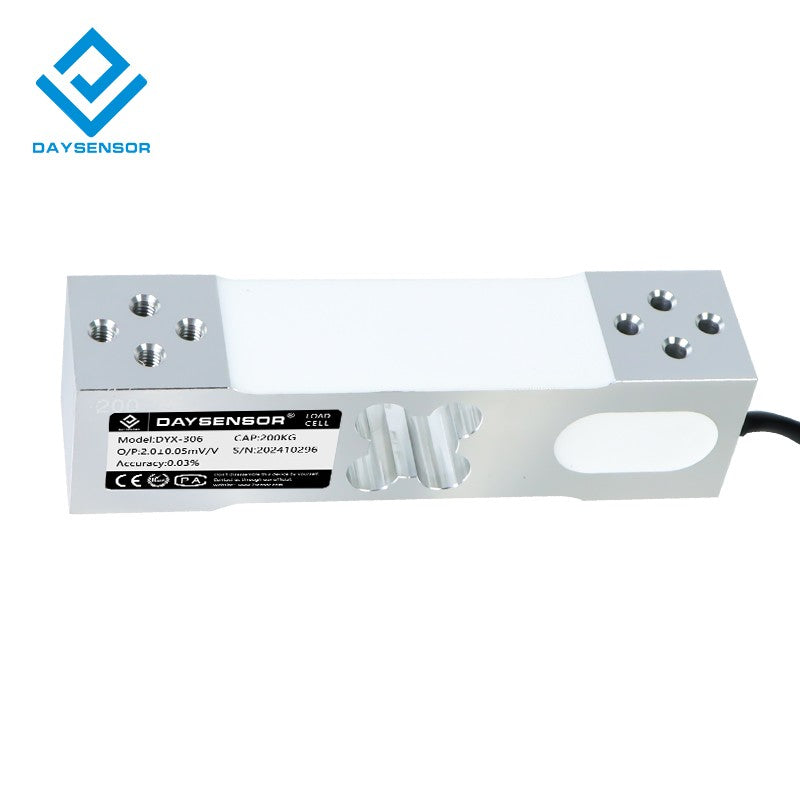

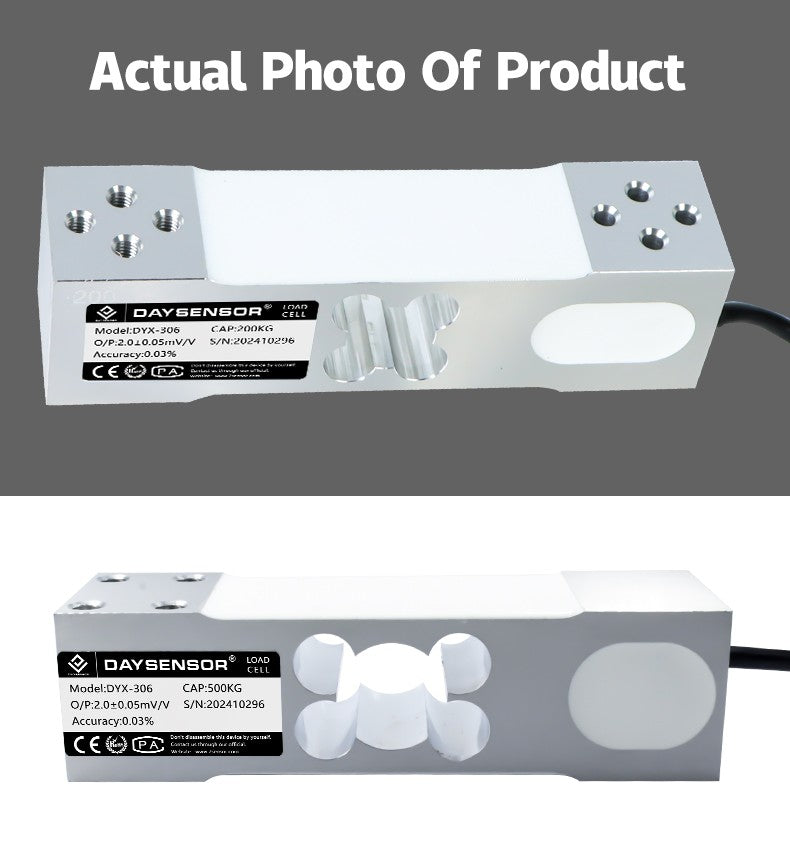

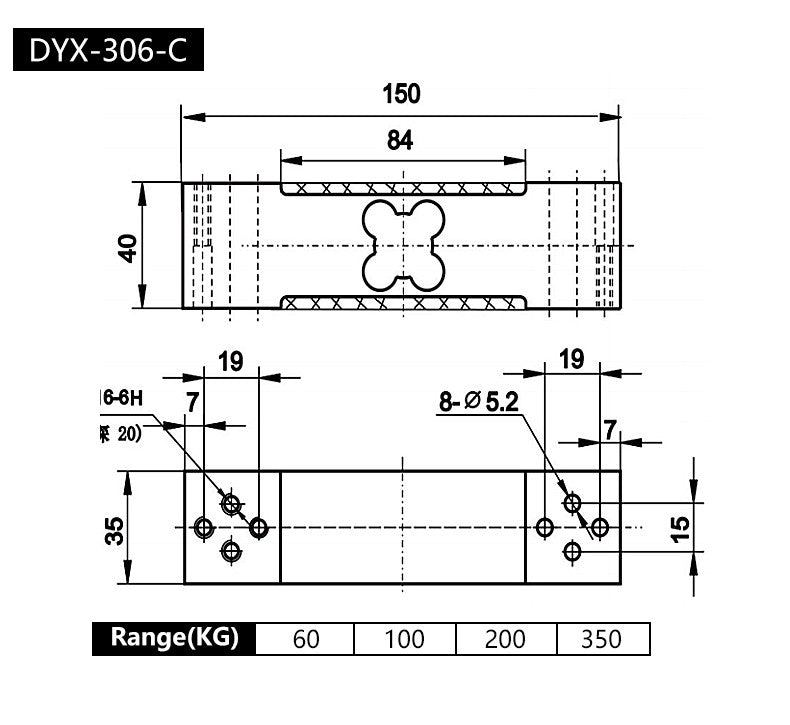

DYX-306C DAYSENSOR Single Point Beam Load Cell Parallel Cantilever Weight Scale Sensor
Increments of 1
Minimum of 1
Maximum of
2Low stock
2In stock, ready to ship
Sale price
$39.99
-0%
Regular price
$39.99
Regular price
$39.99
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
Descriptions:
This shear beam load cell sensor adopts alloy steel material, in use, features high , high sensitivity, and high stability. Applied to electronic scale, track scale, automobile weighing equipment.
Features:
This shear beam load cell sensor adopts alloy steel material, in use.Welding treatment, the is as high as IP67. plating treatment.

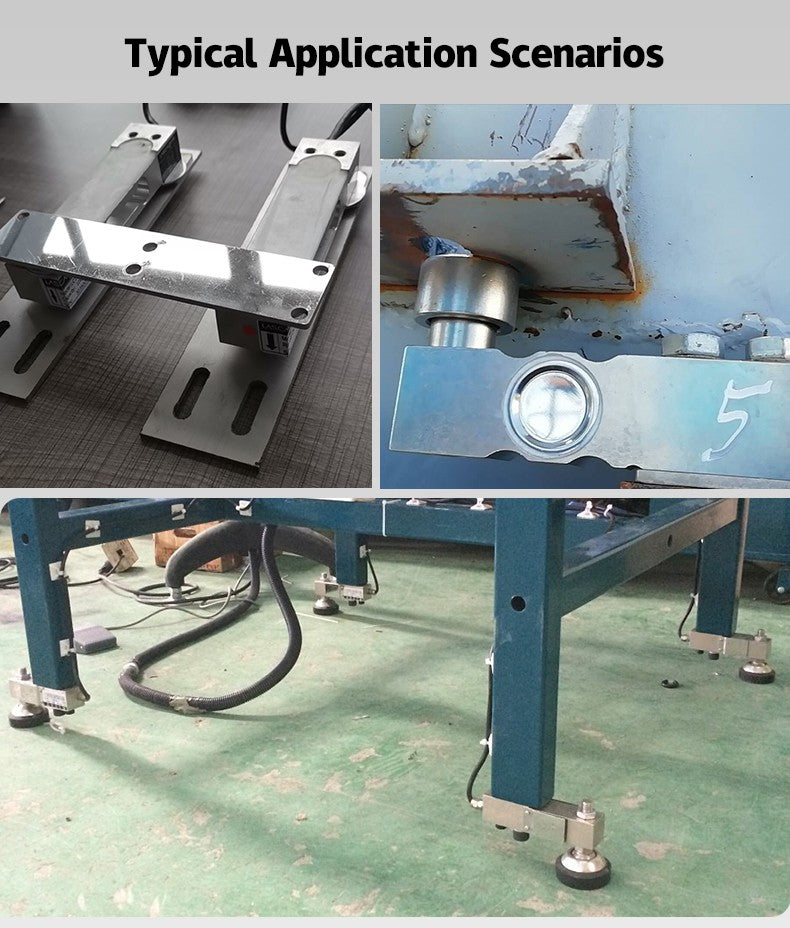

Applied to electronic scale, track scale, automobile weighing equipment.This weighing sensor adopts 4-Core shielded cable.This shear beam load cell sensor features high , high sensitivity, and high stability.Unique bearing blind hole design.Simple and quick installation.

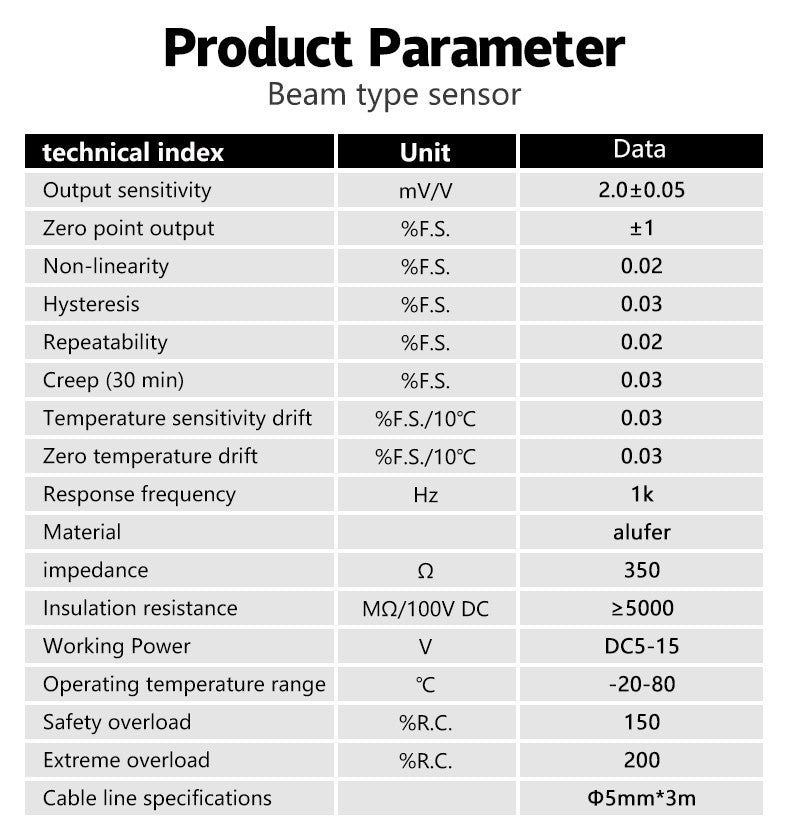

| Brand | DAYSENSOR |
| Wanranty | 3 Years |
| Measurement Range | 30KG-20T |
| Accuracy | 0.03%F.S (linearity + hysteresis ) |
| Repeatability | 0.03%F.S |
| Input Impedance | 350±10Ω |
| Output Impedance | 350±10Ω |
| Insulation Resistance | ≥5000MΩ |
| Sensitivity | 2.0±0.05mV/V |
| Safety Overload | 150%F.S |
| Creep | ±0.03%F.S/30min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.053%F.S/10℃ |
| Temperature Effect on Output | ±0.03%F.S/10℃ |
| Operating Temperature | -20℃~+80℃ |
| Protection Class | IP66 |

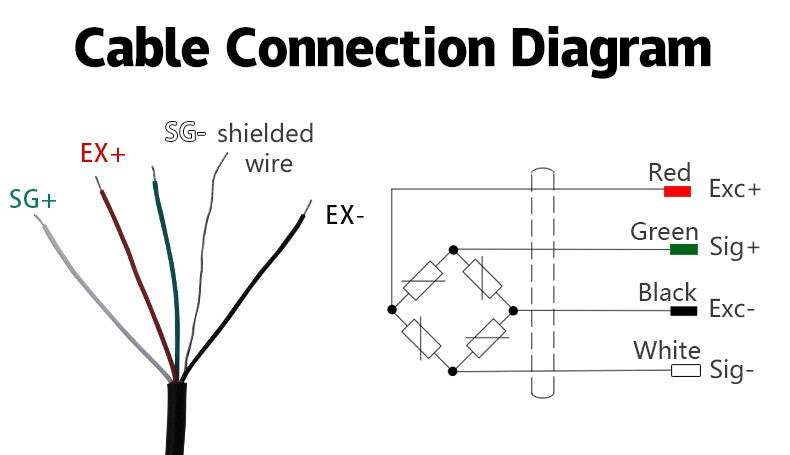

| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |

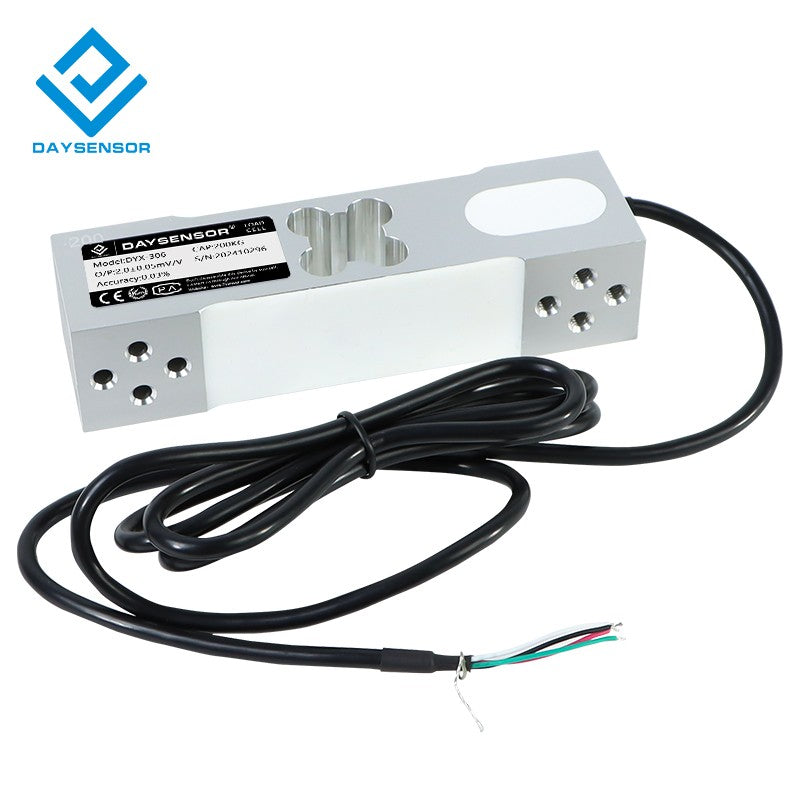

| Cable Length | 3m（ Φ5） |
| Material | Stainless steel/Alloy steel |
After purchasing DAYSENEOR load cell
Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to
