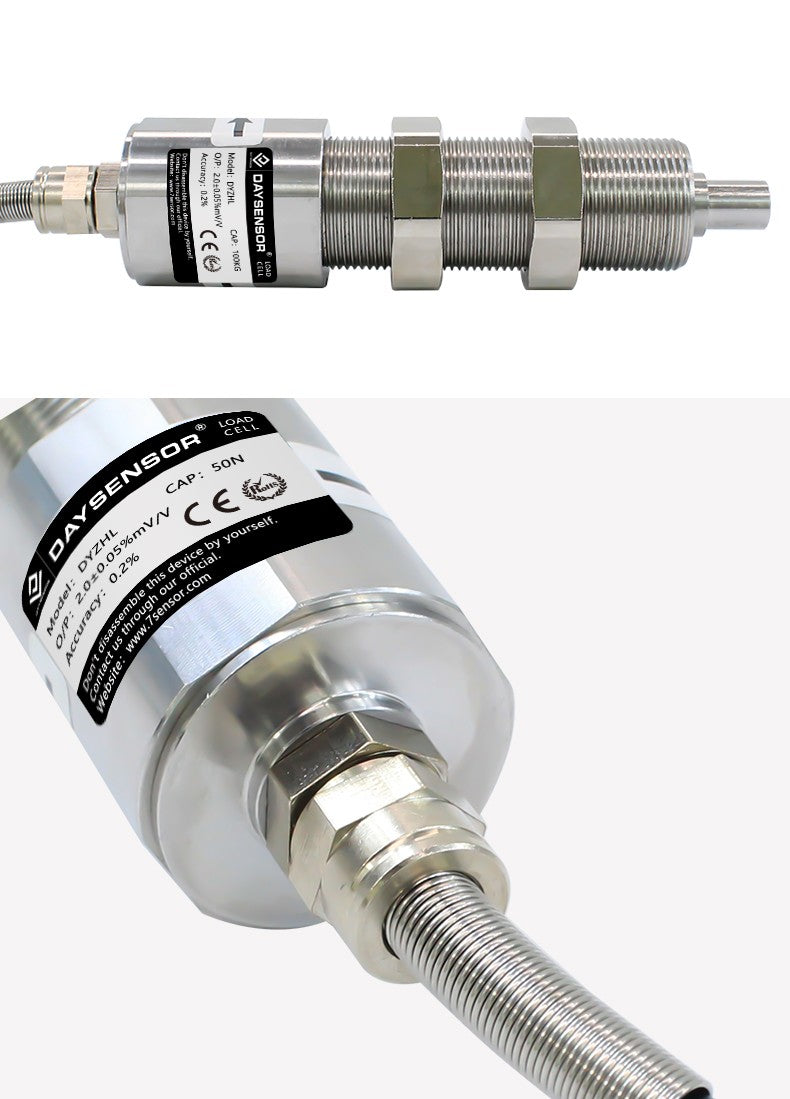

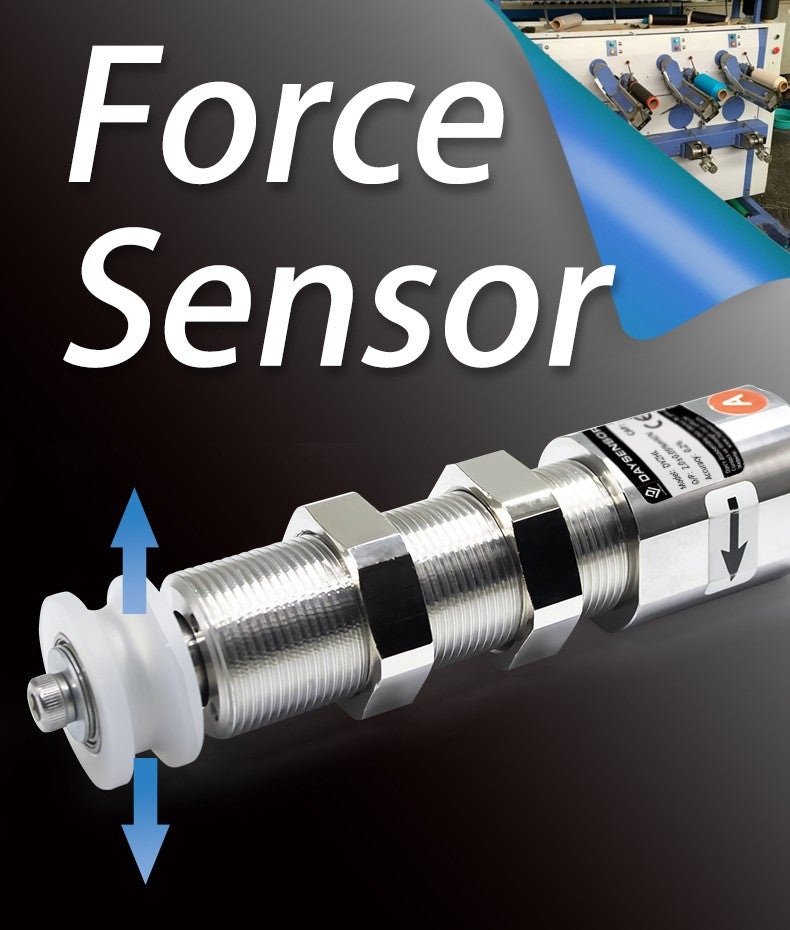

DYZHL DAYSENSOR Tension Sensor 112lb High Accuracy Stainless Steel Industrial Tension

DYZHL DAYSENSOR Tension Sensor 112lb High Accuracy Stainless Steel Industrial Tension

Measurement Range:

0-10N（0-2.3 lb）

0-20N（0-4.6 lb）

0-50N（0-11 lb）

0-100N（0-23 lb）

0-200N（0-46 lb）

0-500N（0- 112 lb）

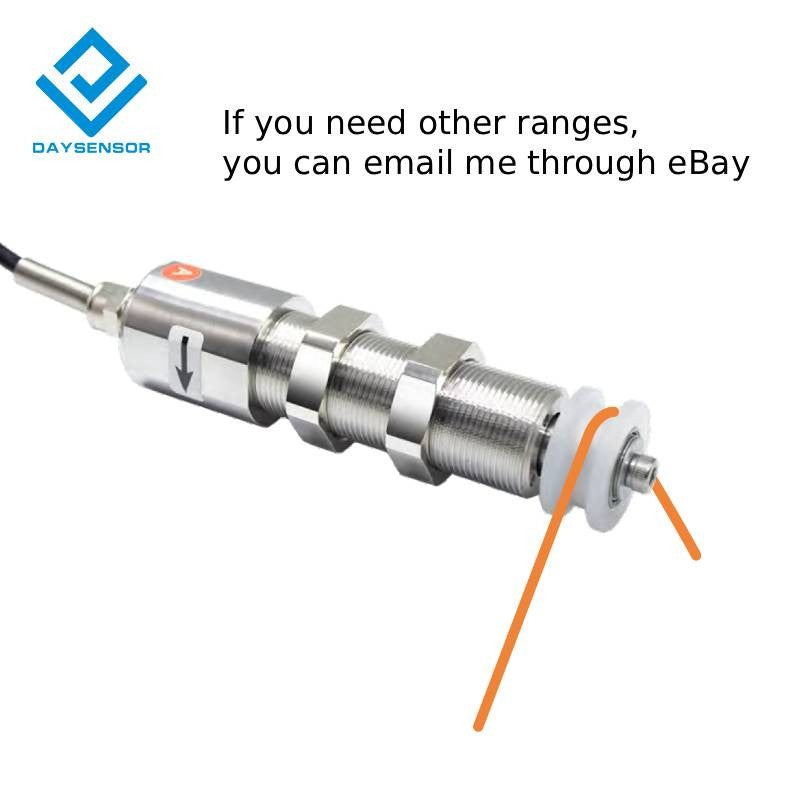

Customize other ranges

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

3Low stock

3In stock, ready to ship

$99.99 -0% $99.99

$99.99

Fast Shipping

Free Returns

Best Deals

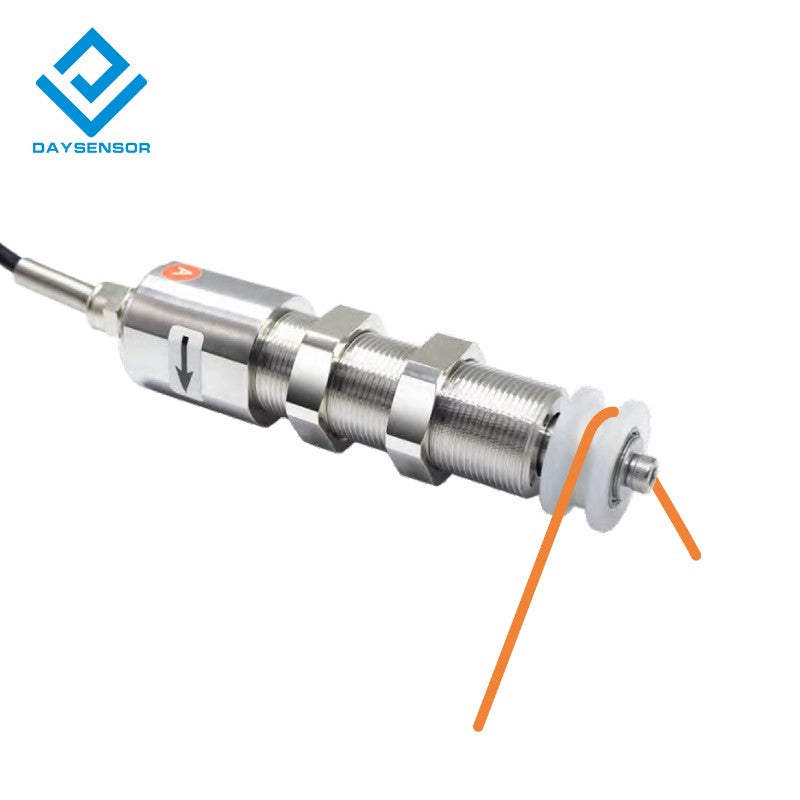

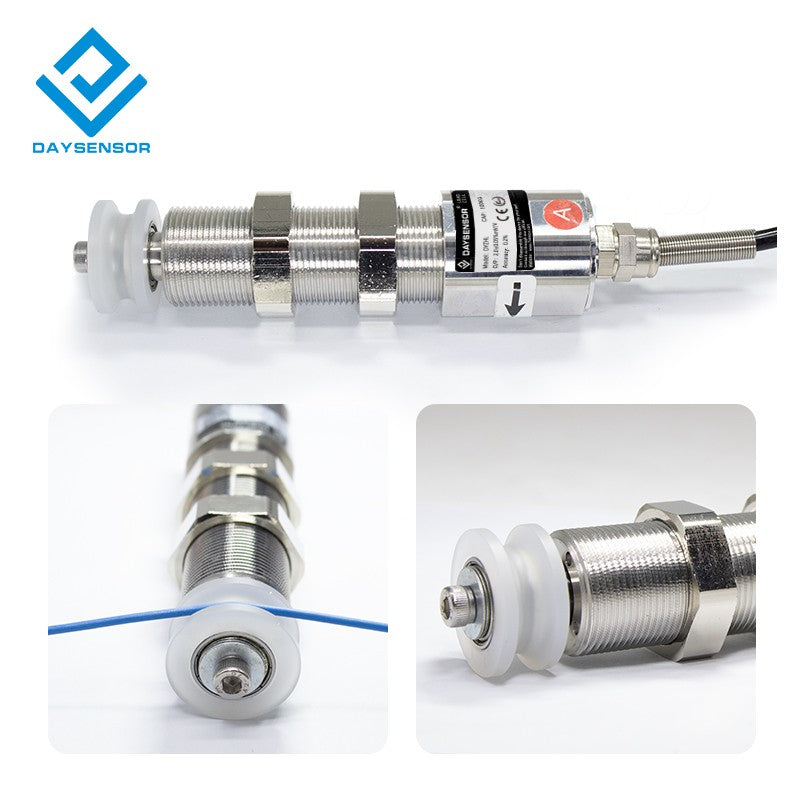

Wide Capacity Range — Tension sensor for wire rope available in 0-2.3lb， 4.6lb，11lb，23lb，46lb，up to 112lb, ideal load cell force sensor for cable wire, yarns, chemical fibers, and rope tension measurement.

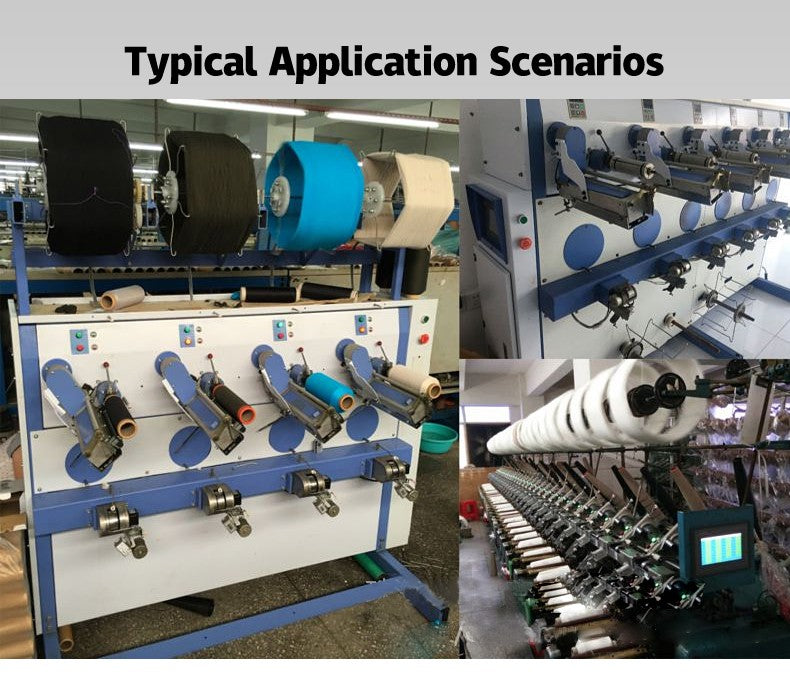

Fast Response Frequency — Force sensor for wire rope with 10kHz dynamic response, captures rapid tension changes in winding, textile, packaging, and cable production applications.

High Accuracy & Stable Performance — Wire rope load cell designed with ±0.1% F.S. accuracy, excellent repeatability and low hysteresis, providing precise force measurement for industrial automation and quality control.

After purchasing DAYSENEOR load cell
Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

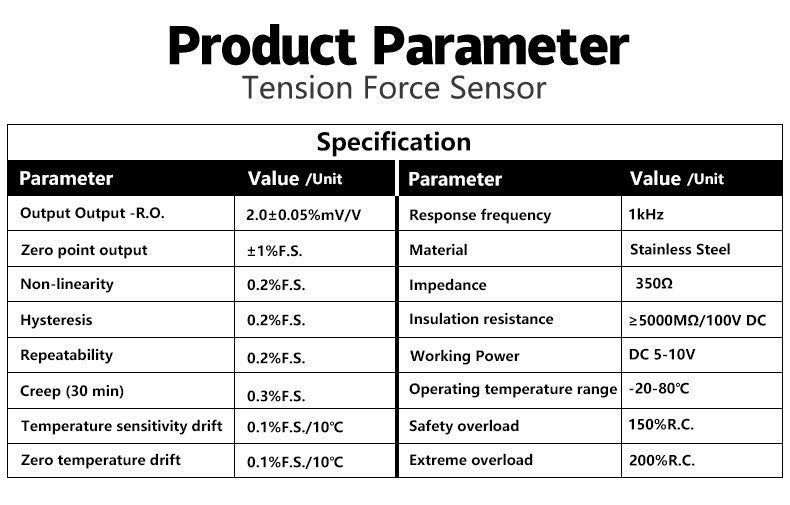

**Specifications**
Brand	DAYSENSOR
Wanranty	3 Years
Measurement Range	2.3lb-112lb
Accuracy	0.2%F.S (linearity + hysteresis )
Repeatability	0.2%F.S
Input Impedance	350±10Ω
Output Impedance	350±10Ω
Insulation Resistance	≥5000MΩ
Sensitivity	2.0±0.05mV/V
Safety Overload	150%F.S
Creep	±0.3%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.1%F.S/10℃
Temperature Effect on Output	±0.031%F.S/10℃
Operating Temperature	-20℃~+80℃
Protection Class	IP66

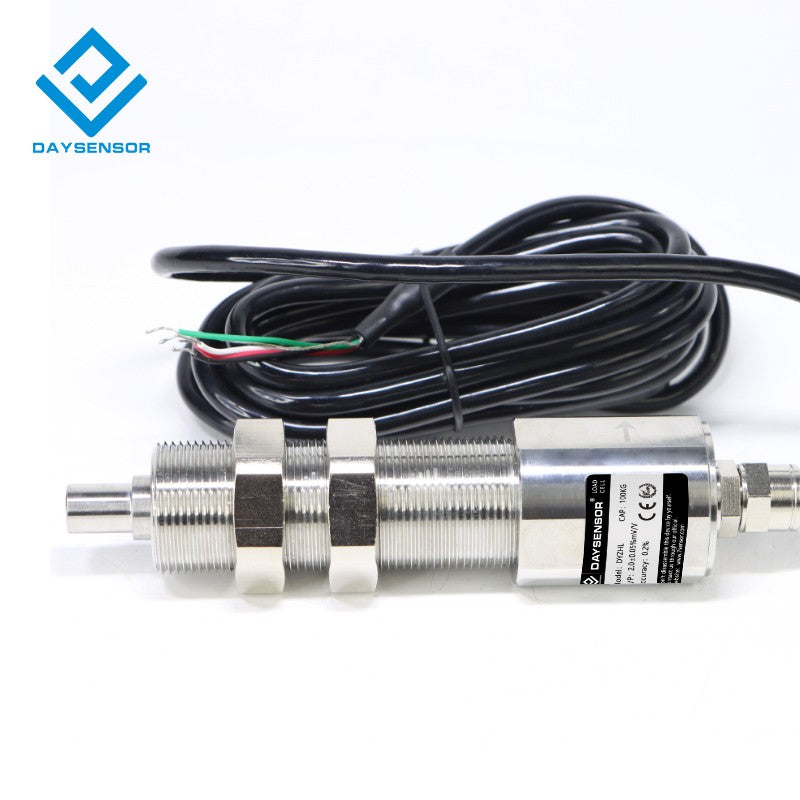

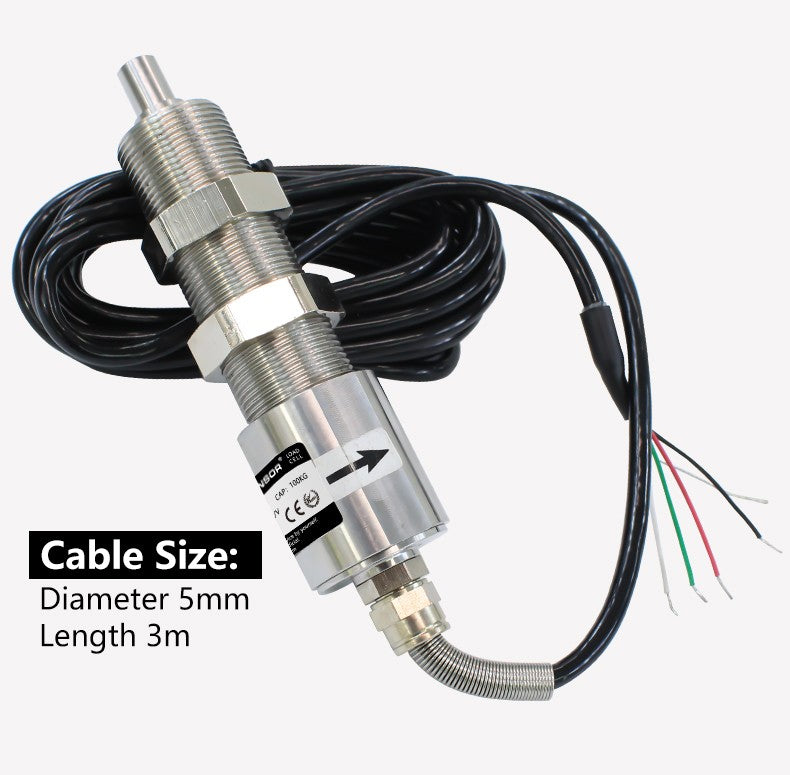

Cable Length	3m（ Φ5）
Material	Stainless steel
Package List	1*Tension Sensor
